532/633nm PM Beam Splitter/ combiner
Product Features
Low Insertion Loss
High Return Loss
High Extinction Ratio
High Stability & Reliability
Application
Fiber Optic Sensing
Fiber Optic Gyroscopes
Fiber Optic Current Sensors
Coherent Telecommunication Systems
Technical Parameters
|
Parameters |
Unit |
Value
|
|
|
Center Wavelength |
nm |
532，633 |
|
|
Operating Wavelength Range |
nm |
±15 |
|
|
Typical Insertion Loss @ 23 ℃ |
dB |
1.3 |
|
|
Maximum Insertion Loss @ 23 ℃ |
dB |
1.5 |
|
|
Minimum Return Loss |
dB |
50 |
|
|
Minimum Directivity |
dB |
50 |
|
|
Minimum Directivity |
dB |
18 |
|
|
Maximum Optical Power (CW) |
mW |
300 |
|
|
Maximum Tensile Load |
N |
5 |
|
|
Fiber Type |
Port 1 & 2 |
/ |
PM Panda fiber |
|
Port 3 |
/ |
SM fiber or PM Panda fiber |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
Note: When using a connector, the handling power is only 1 W, the insertion loss 0.3 dB, the return loss 5 dB, and the extinction ratio 2 dB.
The connector key is aligned with the slow axis.

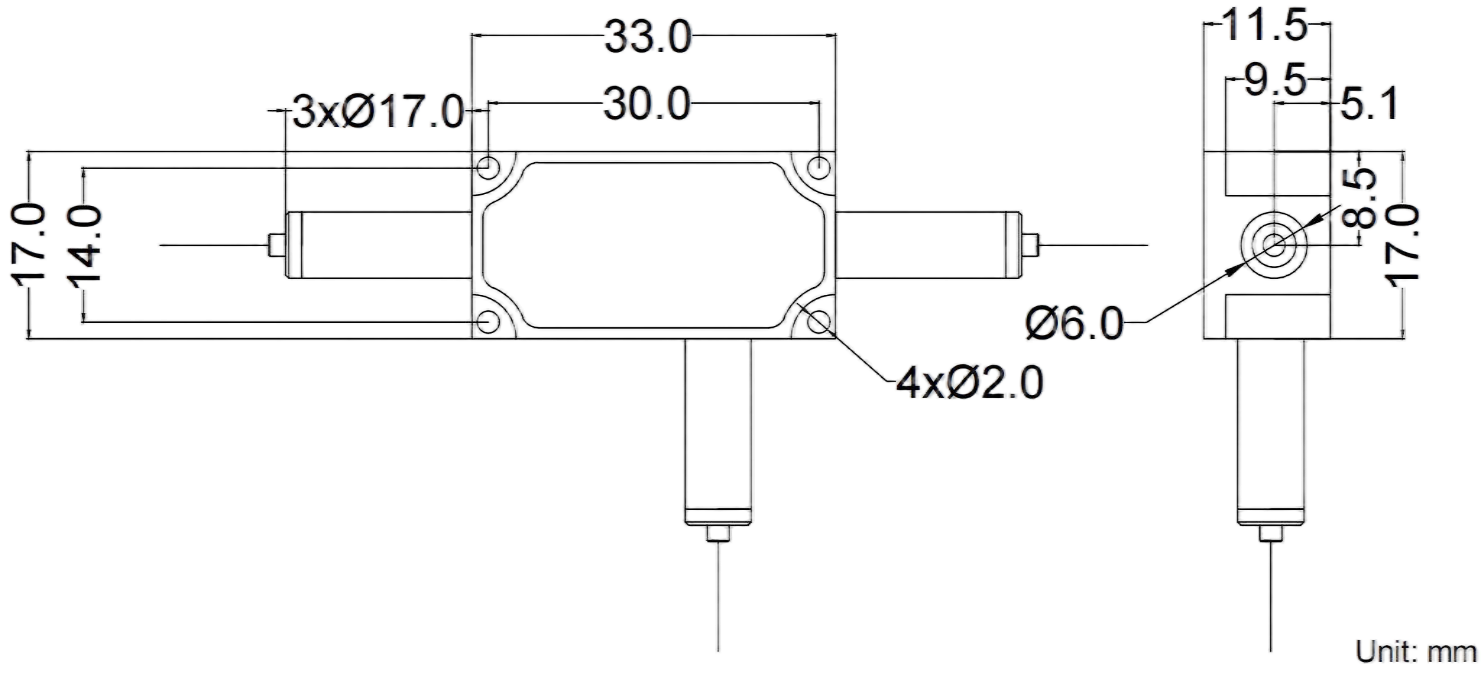

Package Dimensions (Unit：mm)
Ordering Information HC-PMPBS-A-B-C-D-E-F-G-H
|
A |
B |
C |
D |
E |
F |
G |
H |
|
Wavelength |
Port 3 to 1, 2 Options |
Port 3 Fiber Type |
Port 1, 2 Fiber Type |
Package Dimensions |
Pigtail Type |
Fiber Length |
Connector Type |
|
532=532nm 633=633nm X= Other |
1= SM Fiber to PM Fiber 2= PM Fiber to PM Fiber, Port 3 is slow axis 0° aligned to Port 1 ; 3 =PM Fiber to PM Fiber, Port 3 is slow axis 45° aligned to Port 1 |
PM63=PM630-HP 460=460-HP PM46=PM460-HP 630=630-HP X= Other |
PM63=PM630-HP 460=460-HP PM46=PM460-HP 630=630-HP X= Other
|
1= φ33x17x11.5mm X= Other |
0=250umbare fiber 1=900umloose tube |
08=0.8m 10=1m X= Other |
FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC 00=None X= Other |
