Мощный ПНЧ свободно-пространственный изолятор
High Power Polarization Insensitive Free Space Isolator are designed for guarding the laser from back reflected light. The high transmission efficiency, high isolation, high power handling ability and large aperture features make it flexible to fit different applications in laser protection.
|
Specifications |
|
|
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
1064 ± 10 or Specify |
|
Peak Transmission (λc, 23℃) |
% |
>95 |
|
Peak Isolation (λc, 23℃) |
dB |
>30 |
|
Polarization dependent loss |
dB |
<0.2 |
|
Aperture |
mm |
5 or Specify |
|
Optical Average Power |
W |
100 |
|
Operating Temperature |
℃ |
10 to 30 |
|
Storage Temperature |
℃ |
0 to 60 |
|
Mechanical Surface Finishing |
|
Bright Silver Anodic Oxidation |

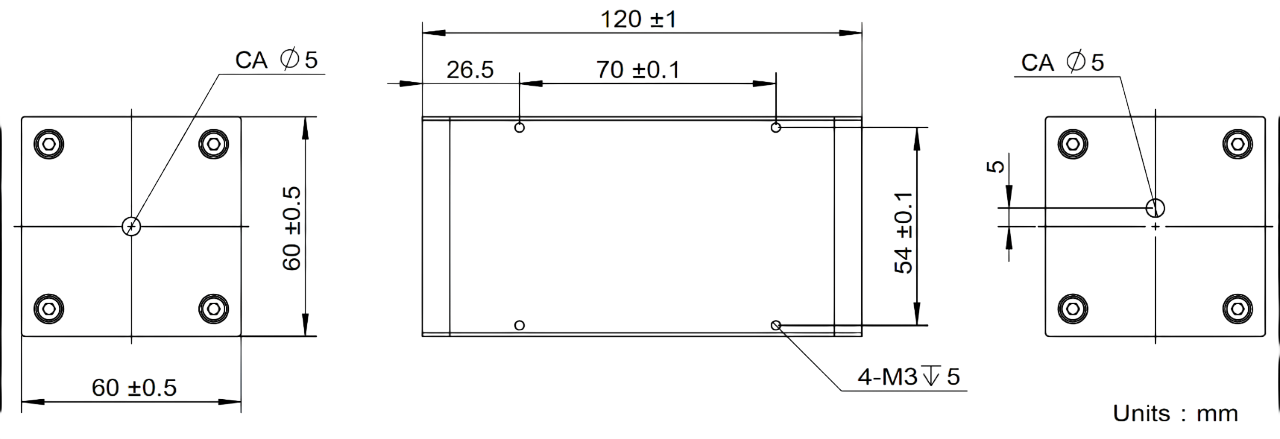

Package Dimensions
Ordering Information
HC-FSPII-①①①①-②-③③③
①①①①: Wavelength ②: Aperture (≤5mm) ③③③:Power Handling
1064 - 1064 nm 5 - Φ5.0 mm 100 - 100W
SSSS - Specify S - Specify SSS - Specify
